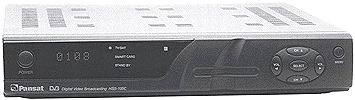

Complete System Includes 3 ft. High-Performance Portable Parabolic Dish (with Patio Mount) 200-A Digital Satellite Receiver PF-7300 LNBF 60 ft. Coax Cable 4 ft. Jumper Cable Easy Instruction Manual Compass Satellite Chart

	200a Features
	99 Transponder Programmable 950-2150MHz IF Range MCPC / SCPC Both Receivable Fully DVB Compliant QPSK & FEC Continuously Variable Symbol Rate 2 to 45 MSps MPEG-II Transport Stream Demultiplexing MPEG-I, MPEG-II MP@ML Video Decoding MPEG-I Layer I / II Audio Decoding Multiple Frame Resolution & Rates Latest State Memory Non Volatile Memory Programmable Video Pause / Audio Mute Function Stereo Volume Control Signal Strength Guide Automatic NTSC or PAL Output C & Ku Band Compatible Surge & Over Current Protection AC90~260V 50/60Hz

RF Input Frequency 950-2150 MHz Signal Level -65 ~ -20dBm Impedance 75 Ohm Connector Type F-Type/IEC Connector Number of Channels 999 DEMODULATOR System Capacity Fully DVB Compliant Carrier Capacity SCPC, MCPC Both Waveform QPSK Symbol Rate 2 to 45 MSps, Variable VIDEO Format NTSC/PAL (Auto) OSD Format 200A : NTSC 100M : PAL B&G Aspect Ratio 4:3 or 16:9 Output Impedance 75 Ohm Output Level 1V p-p Frequency Response 20Hz to 6.0MHz Decoder MPEG-II MP@ML & MPEG-I Bit Rate Up to 15 Mbps Resolution 720 x 576 Connector RCA Phone Jack AUDIO Bandwidth 20Hz - 20KHz Modes Stereo, Joint Stereo, Mono, Dual Mono Decoder Type MPEG I Layer 1 & 2 Sampling Frequency 32, 44.1, 48KHz Bit Rate Up to 384 Kbps

RF / RE MODULATOR Output Frequency 200A CH 3/4 100M UHF 30-45 PAL B&G Output Level 75dBuV Typ. Ê DATA SERVICE Data Rate 2.4 Kbps to 19.2 Kbps Connector RS 232C, 9-Pin D-Sub Type, Male LNB POWER V-Polarity 14V DC (13-15V DC) H-Polarity 18V DC (17-19V DC) Current 500mA POWER SUPPLY/b> Input AC 90-260V, 47-63Hz 40W Max. Protection Fuse & Over Current Protection EXTERNAL SWITCH 22KHz Tone Optional 0/12V Optional MECHANICAL Unit Dimension 35.5 x 27 x 5.85 cm Unit Weight 3.2 kg



	WARNING
	It may be unlawful to operate this device if it is done so with the intent to defraud any person or business by decoding scrambled TV signals or to otherwise violate Federal Laws. We will not knowingly sell this product to anyone who intends to use it for any illegal or unauthorized use. The manufacturer and the distributor does not condone any individuals, companies or groups who engage in the misuse of this product in any way.

Buyer shall be solely responsible and hereby assumes any and all liability for the installation, operation and use of this product including without limitation, the obtaining of all permits, licenses or certificates required for the installation or use of such equipment.

Buyer assumes total responsibility for product application!
